Hobbyduino Mini Proto Plug V2.0

Introduction

Documentation

Build It

Related Links

Disclaimer

Introduction

More mounting options!  I have developed a prototype shield in my pursuit to make it easier to use the Hobbyduino.  This shield allows a breadboard to be mounted on it for prototyping circuits.  It also has a circuit layout in reference to a breadboard that allows for permanent mounted circuits.

Here is the Hobbyduino Mini:

Here is the Proto Plug:

Here is the Hobbyduino Mini mounted on the proto plug:

The proto plug can also be used for permanent circuits by not installing the breadboard.  Here is a bare proto board.

Documentation

  • Schematic – PDF
  • PCB – PDF
  • Schematic – SCH
  • PCB – PCB
  • Mechanical Drawing – DXF
  • Bill of Materials – TXT

The schematic and PCB was developed with the freely available ExpressPCB software.

Build It

Reference the B.O.M above for a list of the parts necessary to complete the Hobbyduino Mini Proto Plug.

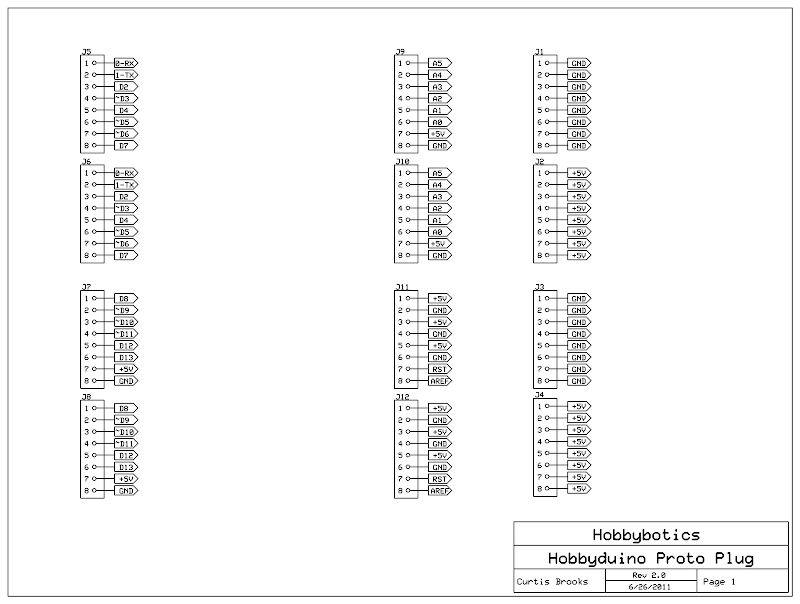

Reference the below schematic and layout file for component locations.
