Tools – MakerBot Replicator

June 30, 2012 hobbybotics Tools 3D Printers, Hobbybotics, MakerBot, Replicator, Tools

I wanted to get into 3D printing so that I can start working on some physical interfaces for my design circuits. Traditional 3D printers are way out my price range but, along comes the RepRap movement and with it an army of 3D off-shoot printers. Now, 3D printing is within reach of the hobbyist. I decided to purchase a MakerBot Replicator because the company is pretty well known for quality products and the Replicator has a dual extruder.

MakerBot fully builds and tests each Replicator before shipping and packages each machine very well.

I followed the instructions from the MakerBot setup videos and manual without any issues.

The Replicator has an SD slot built in so that you can save designs to a card and run them straight from the machine. I selected one of the sample designs already loaded onto the SD card for my first print.

Another option is to load designs into the ReplicatorG software, connect a USB cable and print from the PC or MAC.

Here is a screenshot of my next print loaded into ReplicatorG along with the results:

These are replacement feet for the Replicator as the stock set is cut rubber tubing which does not stay on very well. The design can be found here on Thingiverse.

I need to go through some more tutorials before I feel comfortable enough to create and print my own designs (there is a slight learning curve to the Replicator).

Onward I march so that I can finish up my Probotix FireBall V90 CNC build.

Tools – FireBall V90 CNC Build – Day 5

June 24, 2012 hobbybotics Tools CNC, Hobbybotics, Probotix, Tools, V90

On day 5 I got all of the limit switches mounted to the machine. I spent some time trying to figure out where and how I wanted to mount the switches. I also needed to find an easy way to actuate them when the machine reaches a limit. I scrounged around in my junk parts bin and came up with some pretty neat methods on how to actuate the switches at each limit. The main requirements of my chosen scheme is to make it look neat and keep it functional. Go here to read about the ongoing build and take a look at some pictures along the way.

Tools – PCB Shear

June 22, 2012June 23, 2012 hobbybotics Tools Circuit Board Shear, Circuit Boards, Hobbybotics, PCB, PCB Shear, Tools

I typically send my circuit boards to ITead Studio to have them produced since it is cheaper than ordering them from US companies. International orders can take a long time to ship..usually around 3 weeks. This can become painful if I find a mistake in my design and have to re-order boards. This is why I occasionally bite the bullet and have them made locally. One of the techniques I use to minimize the cost is to place multiple circuit designs onto a single PCB. The problem with doing it this way is there are no snap off tabs between the circuits like you would receive from a panel. There are numerous methods that a hobbyist can use to separate the circuits such as a Dremel or saw. I want a clean cut so using a Dremel tool is out of the question. Also, the material the boards are made of is toxic thus, it is not recommended you cut them out on a table, band saw, etc. A PCB shear will give you a clean straight edge and makes short work of cutting out the individual circuits. I have seen some individuals using a heavy duty paper shear but, I wanted something that was more accurate with a longer lasting blade. The shear is available from T-Tech. The cost is a tad on the high side but, it is better to spend now and save later IMHO.

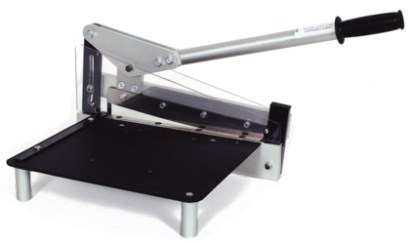

Here is a picture of the PCB Shear:

Tools – FireBall V90 CNC Build – Day 4

June 22, 2012 hobbybotics Tools CNC, Hobbybotics, Probotix, Tools, V90

Day 4 of the build is now in the bag. Updates on the V90 status slowed down a bit as I had to wait for the limit switches to arrive. I got the limit switch assemblies completed minus mounting them to the machine. Go here to read about the ongoing build and take a look at some pictures along the way.

Tools – FireBall V90 CNC Build – Day 3

June 2, 2012June 2, 2012 hobbybotics Tools CNC, Hobbybotics, Probotix, Tools, V90

Day 3 of the build went somewhat quicker than day 2. I got the machine fully assembled and operational (minus adjustments). Go here to read about the ongoing build and take a look at some pictures along the way.

Tools – FireBall V90 CNC Build – Day 2

June 2, 2012June 2, 2012 hobbybotics Tools CNC, Hobbybotics, Probotix, Tools, V90

Day 2 of the build is a wrap. I got more accomplished today than I thought I would be able to do. I managed to unwrap and inspect the remainder of the parts in addition to assembling the gantry and the base. Go here to read about the ongoing build and take a look at some pictures along the way.

Tools – FireBall V90 CNC Build – Day 1

May 31, 2012 hobbybotics Tools CNC, Hobbybotics, Probotix, Tools, V90

So, my FireBall V90 CNC machine arrived on 30 May 2012. The posts that follow will document the build and my user experience. Day 1 started with me opening and inspecting the components. Go here to read about the ongoing build and take a look at some pictures along the way.

Tools – FireBall V90 CNC

May 12, 2012May 31, 2012 hobbybotics Tools CNC, Hobbybotics, Probotix, Tools, V90

Today I managed to gather enough nerve to purchase a FireBall V90 CNC machine with all the bells and whistles from Probotix for under $2000. The V90 has the following features:

Approximately 12″ x 18″
Thomson precision linear shafts
Oilite bearings
Precision Acme 2-start lead screws
Anti-backlash drive nuts
CNC USB controller and software
Aluminum T-slot extrusion spoil board
Bosh Colt PR20EVSK Router and holder
MeshCam software
3-Axis ProboStep Motor/Driver Kit
40 VDC Linear RTR power supply
Larger enclosure for power supply and motor controllers
220 in/min rapids

The machine is supported by the FireBall CNC Yahoo Group.
