Introduction
This tutorial explains how to measure a voltage across a potentiometer (POT) and display the results in the serial monitor. The measured voltage will vary between 0 and 5 VDC as you adjust the potentiometer.
Suggested Applications
- Volume control
- Position sensor
- Liquid Crystal Display (LCD) contrast or brightness control
Parts List

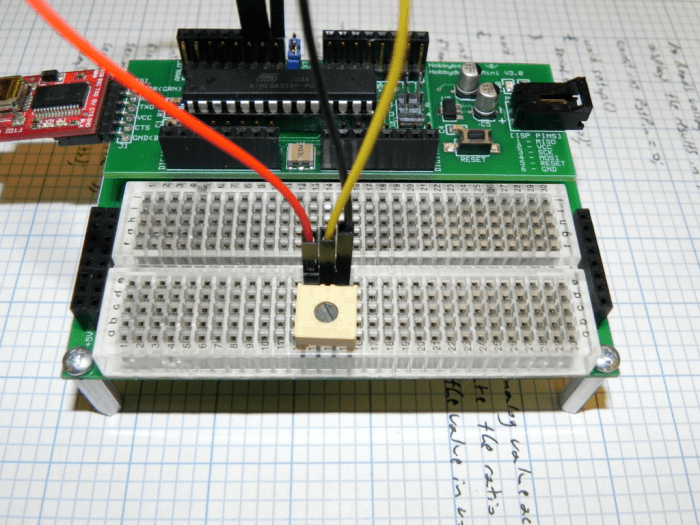

- Arduino or Arduino clone (a Hobbyduino Mini V3 is used for this tutorial)
- 10K potentiometer
- Hobbyduino Proto Plug (optional) or breadboard
- FTDI Basic (Sparkfun)

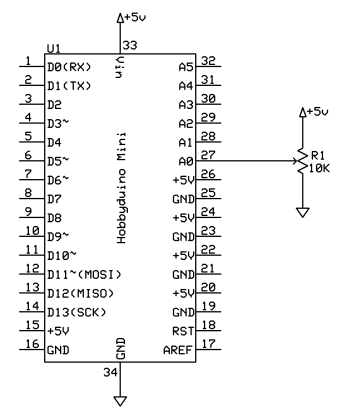

Basic Wiring
Code
Copy-n-paste or download the following sketch.
/* Reads voltage across a 10K Pot and displays the results in the serial monitor */ #define POTpin 0 // Potentiometer connected to analog pin 0 void setup() { Serial.begin(57600); // Set serial to 9600 baud } void loop() { int val = analogRead(POTpin); // Read analog value across Pot float volts = (val/1023.0) * 5.0; // Calculate the ratio Serial.print("Volts DC: "); Serial.println(volts); // Print value in volts delay(1000); // Delay 1sec }
Upload the sketch to the Arduino and open the serial monitor (be sure the baud rate in the serial monitor matches that of the sketch).

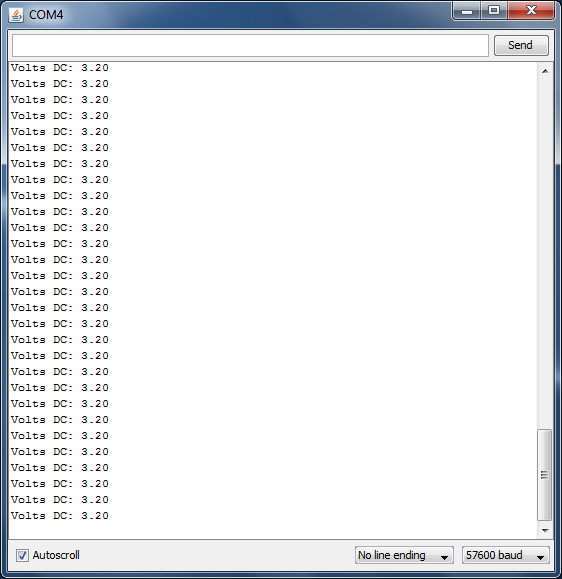

Measured Voltage:
Discussion
Basically, a potentiometer is a resistor setup as a variable voltage divider. There are two terminals and a sliding contact (also called a wiper). The resistance increases or decreases as you slide (rotate) the wiper from one end to the other.
The voltage level measured by analog pin 0 varies as you adjust the position of the wiper. The ATMega328 used on the Hobbyduino Mini contains a 6 channel, 10-bit analog to digital converter (A/D). The A/D maps input voltages between 0 and 5 VDC into an integer value between 0 and 1023. This conversion is achieved by the Arduino analogRead() function.
analogRead(pin)
- pin – number of the analog pin to read (o to 5 for the Hobbyduino)
The analogRead() function returns a integer value between 0 and 1023.
Demonstration
Here is a video demonstrating the concepts of this tutorial:
